When Communications are Critical

Criticalbattery.com

When You Life is in the balance.

Supplies for the BK-Gen2 Digital Radios

Models KNG / KNG2 Radios

P150 / P400 / P500 / P800 Series

Download the KNG Gen-2 Catalog Sheet

Download the Gen-1 DPH Catalog Sheet

_______________________________________________________________

Premium Replacement Batteries

Everything You Need for Your Gen-2 BK

Excellent Fit with these specific radios

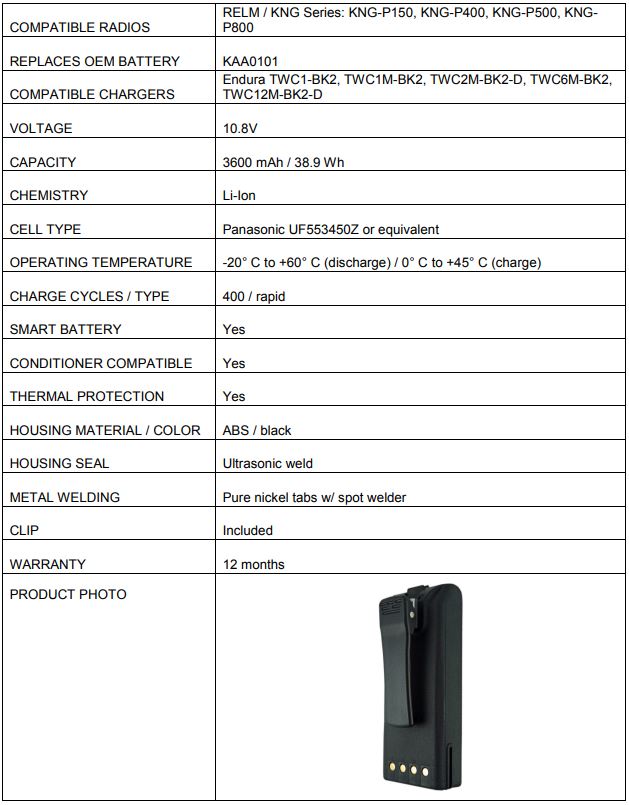

P/N C0101LIXT

Replaces O.E.M. KAA0101

10.8V, 3600 mAh, 38.9 Wh, Li-Ion, SMART Battery

Fits: KNG-P150, KNG-P400, KNG-P500, KNG-P800, KNG2-P150, KNG2-P400, KNG2-P500, KNG2-P800.

Japanese cells. Includes belt clip (CL0100). Smart battery. Dimensions (HxWxD): 5.22" x 2.30" x 0.96"

(132.7 mm x 58.4 mm x 24.3 mm). Weight: 0.60 lbs. / 272.5 g.

1-year warranty

$111.45

Data Sheet -- Buy Now on Amazon -- call or email for a quote

______________________________________________________________

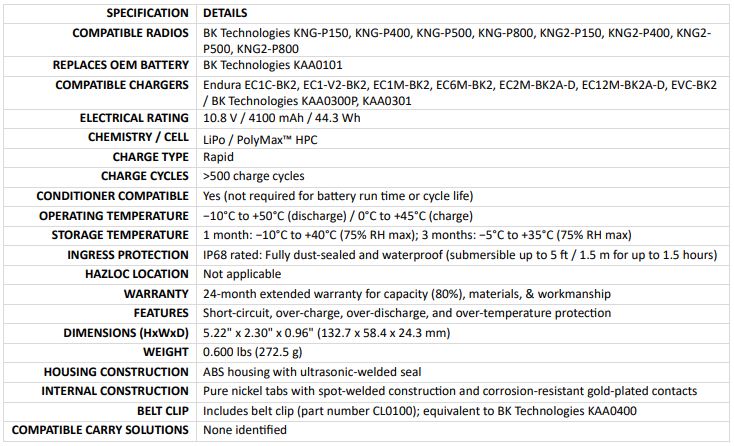

P/N C0101LIP-41

Replaces O.E.M KAA0101

10.8V, 4100 mAh, 44.3 Wh, Li-Ion

Fits: KNG-P150, KNG-P400, KNG-P500, KNG-P800, KNG2-P150, KNG2-P400, KNG2-P500, KNG2-P800.

PolyMax HPC cells. Includes belt clip (CL0100). Dimensions (HxWxD): 5.22" x 2.30" x 0.96"

(132.7 mm x 58.4 mm x 24.3 mm). Weight: 0.60 lbs. / 272.5 g.

2-Year Warranty

$131.10

Data Sheet -- Buy Now on Amazon -- call or email for a quote

_________________________________________________________

P/N C0100LI

Replaces O.E.M. KAA0100

10.8v, 2200 mAh, 23.8 Wh, Li-Ion, SMART Battery

Fits: KNG-P150, KNG-P400, KNG-P500, KNG-P800, KNG2-P150, KNG2-P400, KNG2-P500, KNG2-P800.

IP68 rated. Japanese cells. Includes belt clip (CL0100). Smart battery.

1-year warranty

$104.85

Data Sheet -- Buy Now on Amazon -- call or email for a quote

_________________________________________________________

Charging Solutions

Radio may stay powered on while charging

Space efficient designs simplify in-vehicle installation

Cold and hot battery monitoring & other important warnings

All models safely charge O.E.M. Li-Ion and NIMH batteries

Our Best Mobile Charger

P/N EVC-BK2

In-Vehicle Single Cup Charger

Charges: KNG-P150, KNG-P400, KNG-P500, KNG-P800, KNG2-P150, KNG2-P400, KNG2-P500, KNG2-P800.

Includes DC power cable, tie-down strap, and USB port for charging iPhone / iPad or Samsung devices. For use with Li-Ion / LiPo batteries only.

Key Product Features: Radio holder provides a precision fit with the radio and battery.
Status LED confirms charging in progress, charging 80% complete, and battery fully charged.
Includes fasteners for mounting. Charges battery with or without radio. Two-year warranty.
Note: EVC-BK2 requires 14V / 1A minimum to fully charge a KNG battery. Input voltage from 12V-14V will result in the battery being under charged.

Rugged single unit charger tested to 9 g-force. Includes USB port

for mobile phone charging, 12-24 VDC, Full 2-year warranty

$179.80

Data Sheet -- Buy Now on Amazon -- call or email for a quote

All Mobile Chargers Video: https://youtu.be/AyH7Z9UZyHU

___________________________________________________________________

Our Best Four Cup Mobile Charger

P/N EVC-MT19-4

Charges: KNG-P150, KNG-P400, KNG-P500, KNG-P800, KNG2-P150, KNG2-P400, KNG2-P500, KNG2-P800.

Includes DC power cable with locking XLR connector.

For use with Li-Ion / LiPo batteries only. Dimensions (HxWxD): 10.0" x 16.0" x 4.8" / 25.4 x 406.4 x 121.9 mm.

Key Product Features: Each charging position includes a tie-down strap and USB port for charging a mobile phone or tablet.
Status LED confirms charging in progress, charging 80% complete, and battery fully charged.
Charges battery with or without radio. Two-year warranty.
Tested to 9 g-force and NFPA compliant.
Note: EVC-BK2-4 requires 14V / 1A minimum to fully charge a KNG battery. Input voltage from 12V-14V will result in the battery being under charged.

In Vehicle 4-unit charger, ultra compact, 12-24 VDC, Full 2-year warranty

$1057.05

Data Sheet -- Buy Now on Amazon -- call or email for a quote

All Mobile Chargers Video: https://youtu.be/AyH7Z9UZyHU

__________________________________________________________________

Calibrating Charger for BK Gen-2 Batteries

P/N EC1C-BK2

120/240 VAC Calibrating Charger

Calibrates / charges batteries for KNG-P150, KNG-P400, KNG-P500, KNG-P800, KNG2-P150, KNG2-P400,

KNG2-P500, KNG2-P800. Includes AC to DC power supply. Compatible with KAA0100,

KAA0101, KAA0103, BP0100LI, BP0101LIXT batteries. Special order item.

Product Brochure

User Manual

Switch on side allows selection of Charge Only Mode or Calibration Mode. Calibration Mode
(CAL) enables you to refresh batteries that incorrectly display battery charge level on the radio.
This condition is typically discovered when a fully charged and healthy battery is placed on the radio and
the battery level icon shows less than full charge. Charge Only Mode (CHG) is selected when you simply want to charge a battery.

Features: Hot and cold battery monitoring, charges / calibrates battery while on or off the radio.
Separate LEDs confirm charging or calibration status.

Not Sold on Amazon

$89.85

BK Conditioning Charger Video: https://youtu.be/_TZC2TwgV2w

_____________________________________________________________________

AC Desk Charger

P/N EC1-V2-BK2

Charges: KNG-P150, KNG-P400, KNG-P500, KNG-P800, KNG2-P150, KNG2-P400, KNG2-P500, KNG2-P800.

For use with Li-Ion / LiPo batteries only.

Product Features: Replaceable pod allows future use with different radios / batteries.
Charges battery with or without radio. Status LED confirms charging in progress, charging 80% complete, and fully charged.
Certified to meet U.S. Department of Energy (10 CFR, Part 430, PC3/4) and California Energy Commission (CEC-400-2011-005) requirements for energy conservation.

120/240 VAC Desktop Charger

Affordable single unit charger

2-year warranty

$59.85

Data Sheet -- Buy Now on Amazon -- call or email for a quote

Power Products Charger Video: https://youtu.be/AyH7Z9UZyHU

_____________________________________________________________________

DC Mobile Charger

P/N EC1M-V2-BK2

Charges: KNG-P150, KNG-P400, KNG-P500, KNG-P800, KNG2-P150, KNG2-P400, KNG2-P500, KNG2-P800.

For use with Li-Ion / LiPo batteries only.

Product Features: Includes vehicle power adapter and mounting bracket with adjustable tie-down strap.
Replaceable pod allows future use with different radios / batteries.
Charges battery with or without radio. Status LED confirms charging in progress, charging 80% complete, and fully charged.
Certified to meet California Energy Commission requirements for energy conversation (CEC-400-2011-005).
Note: EC1M-V2-BK2 requires 14V / 1A minimum to fully charge a KNG battery. Input voltage from 12V-14V will result in the battery being under charged.

In-Vehicle Charger

Single unit in-vehicle charger with mounting bracket and VPA

12-24 VDC, Full 2-year warranty

$77.85

Data Sheet -- Buy Now on Amazon -- call or email for a quote

EC1M Mobile Charger Video: https://youtu.be/_APBqRJHSjE

____________________________________________________________________________

Two Cup Dual Charger, Desktop or Mobile

P/N EC2M-BK2A-D (Desktop) or EC2M-BK2A-D-M (Mobile)

Charges: KNG-P150, KNG-P400, KNG-P500, KNG-P800, KNG2-P150, KNG2-P400, KNG2-P500, KNG2-P800.

For use with Li-Ion / LiPo batteries.

Product Features: Charges two batteries with or without radio. Replaceable pod allows future use with different radios / batteries.
Status LED for each position confirms charging in progress, charging 80% complete, and fully charged.
Provides cold and hot battery monitoring for batteries with temperature sensing circuitry.
Certified to meet U.S. Department of Energy (10 CFR, Part 430, PC3/4) and California Energy Commission (CEC-400-2011-005) requirements for energy conservation.
Note: EC2M-BK2A-D-M requires 14V / 1A minimum to fully charge a KNG battery. Input voltage from 12V-14V will result in the battery being under charged.

Desktop or In-vehicle Charger

Dual unit charger, 120/240 VAC model or 12-24VDC Model

Full 2-year warranty

Desktop AC Version: $106.20 Mobile DC Version: $192.00

Both come with AC power supplies, DC version includes

DC power cords and mounting bracket with tie-downs

Data Sheet -- call or email for a quote

Buy AC Desktop unit on Amazon -- Buy 12-24 VDC mobile version on Amazon

Power Products Charger Video: https://youtu.be/AyH7Z9UZyHU

___________________________________________________________________

Six Cup Desk or Mobile Charger

P/N EC6M-V2-BK2 (Desktop) or EC6M-V2-BK2-M (Mobile)

Charges: KNG-P150, KNG-P400, KNG-P500, KNG-P800, KNG2-P150, KNG2-P400, KNG2-P500, KNG2-P800.

Charges Li-Ion, and LiPo batteries. Includes 100-240V AC power supply (TWC6M-PS) with cord for U.S. type wall outlet (TWC6M-PC) and user manual.

Product Features: Compact footprint (20.0" x 5.8" x 3.6") and weighs only 3.1 lbs. Rapid charges NiCd, NiMH, or Li-Ion batteries.
Replaceable pods allow future use with different radios / batteries.
Charges battery with or without radio.
Status LED confirms charging in progress, 80% complete, and fully charged. Approvals: FCC, CEC, CE, and UL for power supply.
Note: EC6M-V2-BK2-M requires 14V / 6A minimum to fully charge 6 KNG batteries. Input voltage from 12V-14V will result in the battery being under charged.

Desktop or In-vehicle Charger

Six unit charger, 120/240 VAC model or 12-24VDC Model

Full 2-year warranty

Desktop AC Version: $375.00 Mobile DC Version: $516.45

Both come with AC power supplies, DC version includes

DC power cords and mounting bracket with tie-downs

Data Sheet -- call or email for a quote

Buy AC Desktop unit on Amazon -- Buy DC mobile version on Amazon

Power Products Charger Video: https://youtu.be/AyH7Z9UZyHU

_____________________________________________________________________________

Base or Mobile 12 Cup Charger

P/N EC12-BK2-D (Desktop) or EC12-BK2-D-M (Mobile)

Charges: KNG-P150, KNG-P400, KNG-P500, KNG-P800, KNG2-P150, KNG2-P400, KNG2-P500, KNG2-P800

Includes 6 dual charging pods and power supply with cord for U.S. type wall outlet.

Rapid charges Li-Ion, or LiPo batteries

Certified to meet California Energy Commission (CEC-400-2011-005) and DoE (10 CFR, Part 430) requirements for energy conversation.

Provides cold and hot battery monitoring for batteries with temperature sensing circuitry.

Product Features: charges two batteries with or without radio.
Replaceable pod allows future use with different radios / batteries.
Charging status of rear radio position confirmed by top LED.
Charging status of front radio position confirmed by middle LED.
Bottom LED illuminates to confirm charger is receiving power when both front and rear positions are empty.
Approvals: CEC, DoE, FCC, CE, UL (power supply).
Note: EC12-BK2-D-M requires 14V / 12A minimum to fully charge 12 KNG batteries. Input voltage from 12V-14V will result in the batteries being under charged.
